GW-T series

GW-T series is a full port isolated edge gateway with ports such as RS485, RJ45, WiFi, LoRa, etc. It can run multiple protocols at the same time, providing efficient and stable support for the interconnection of different devices and systems.

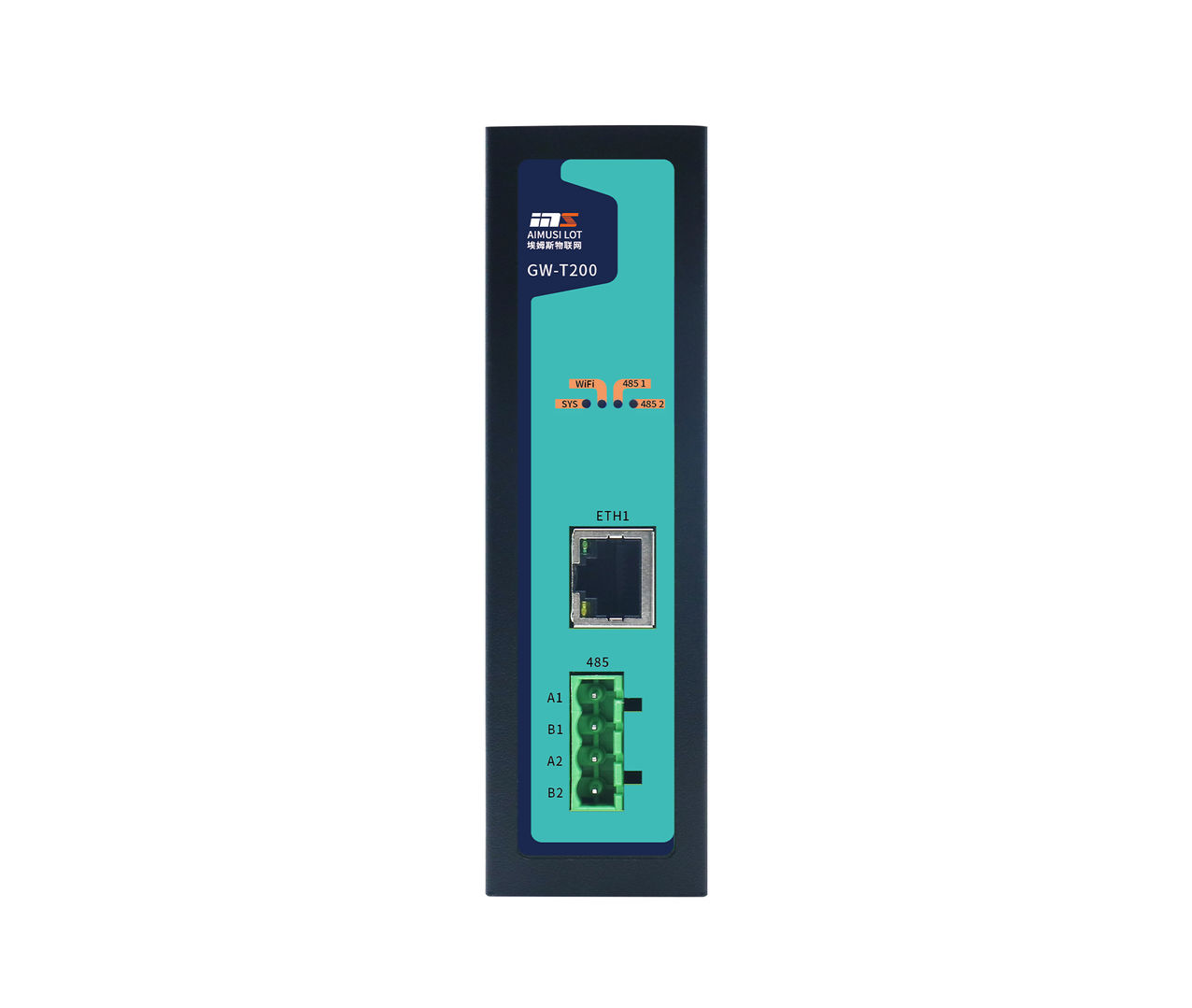

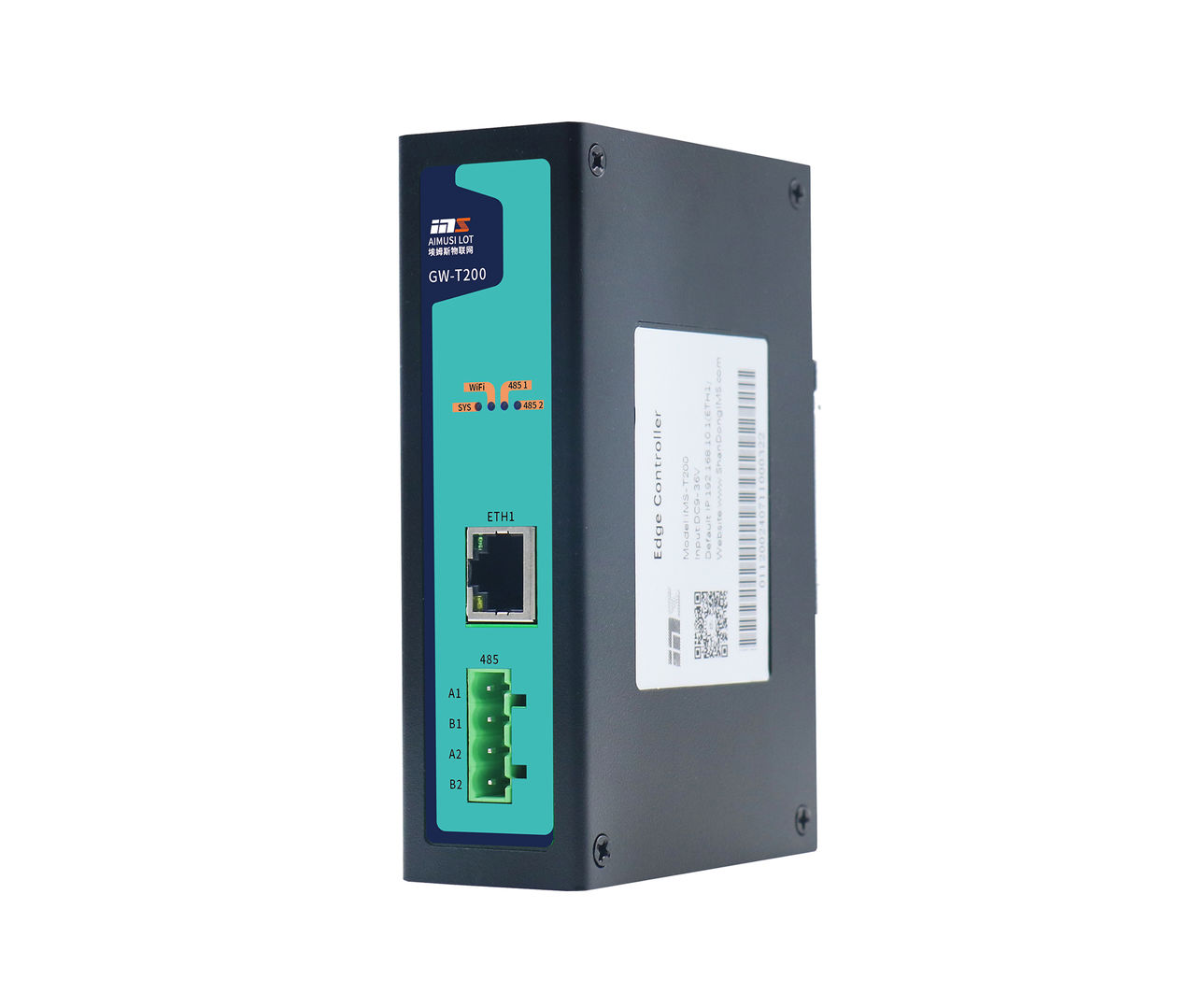

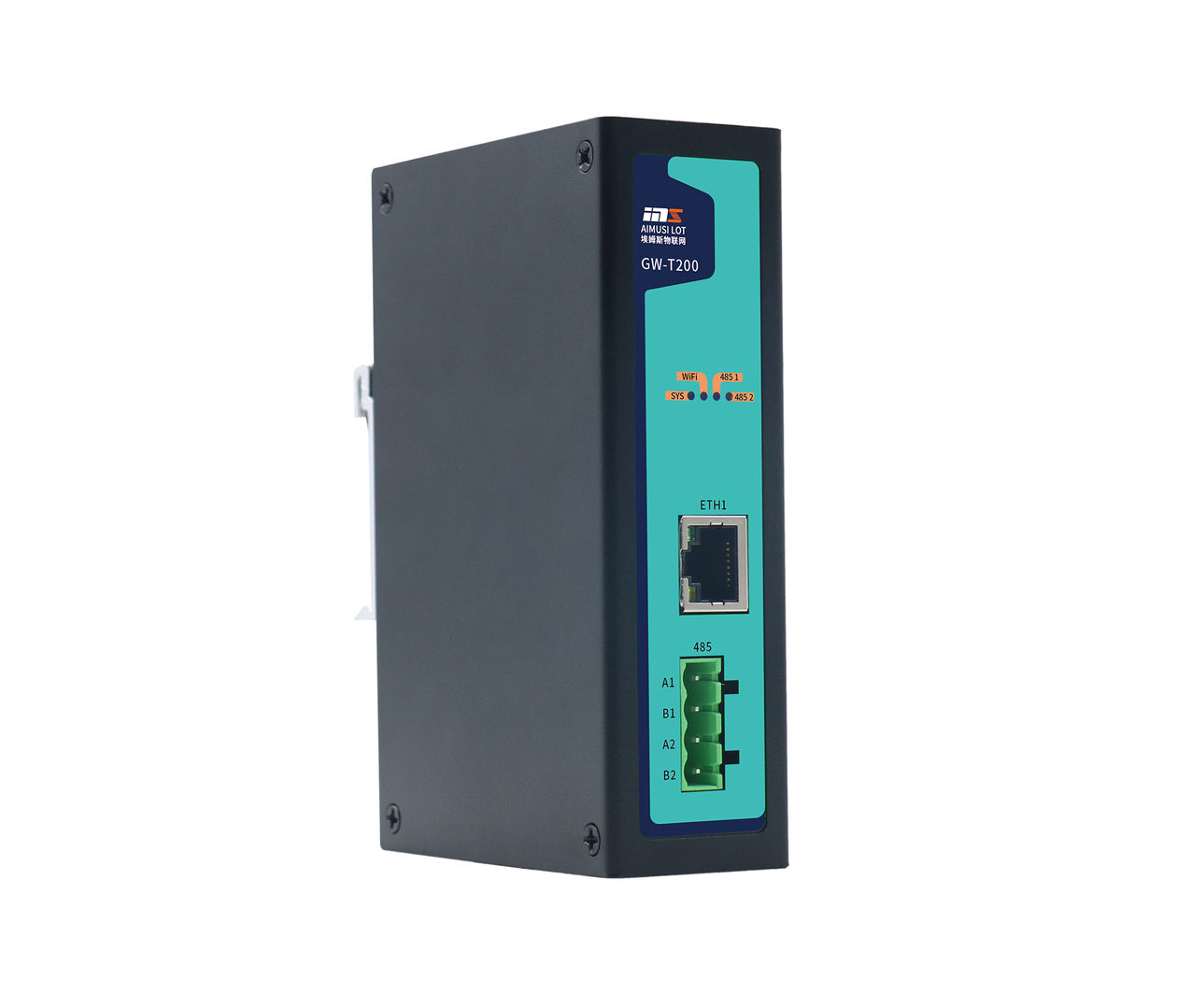

GW-T200

Model	Ethernet port	485	Optional Function	Power supply	Order number
GW-T200	1	2	- LoRa WiFi 4G -	DC9-36V	GW-T200-0 GW-T200-1 GW-T200-2 GW-T200-3 GW-T200-4
GW-T100	1	2	4G	DC9-36V	GW-T100-0

Feature

Processor:

Pure domestic hardware scheme, main frequency 1.2GHz

Cloud platform:

Support IMS cloud platform

Flexibility:

Support interface and graphical programming

Scalability:

2 serial ports, 1 network port, 1 WiFi, 1 LoRa, 1 4G

Multi protocol support:

ModbusRTU、modbusTCP、OPCUA、IEC61850、IEC104、MQTT、BACnet、DL/T645、Custom and other protocols

Small size:

125*80*36mm（Terminal not included）

Flexible installation:

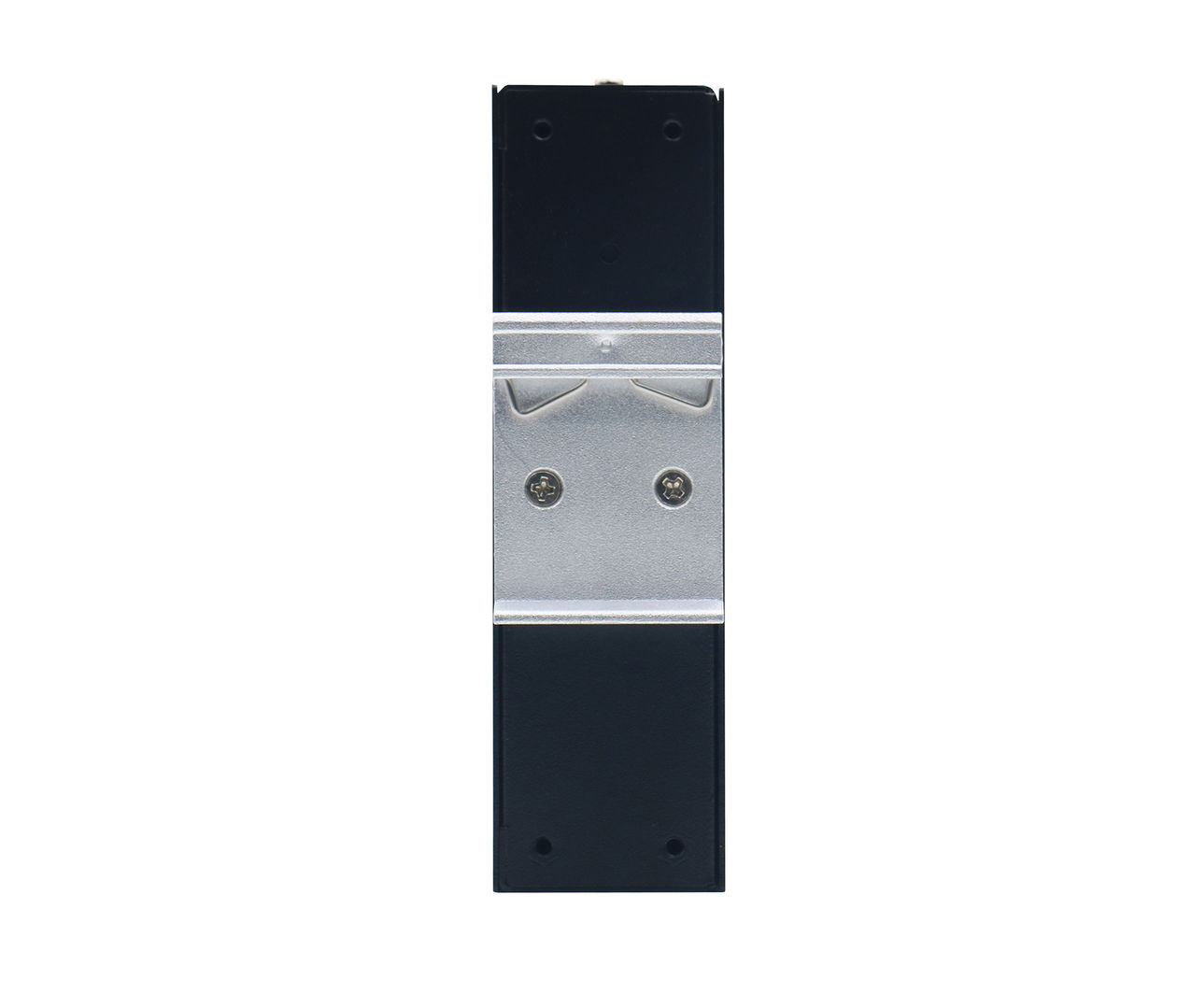

Wall mounted (lug, guide rail), desktop

Applicable to harsh environment:

Full port isolation operating temperature -25~75 ° C

Applicable scenarios

Papermaking

Chemical plant

Construction industry

Smart agriculture

Smart transportation

HVAC
