M-BUS converter

M-BUS converter is mainly used to convert M-BUS bus to RS485 or RS232, so that master equipment without M-BUS host interface can communicate with M-BUS slave equipment (such as water meter, temperature control valve). This series of products are designed according to the industrial standard, and have excellent characteristics such as wide temperature, wide pressure and strong load capacity. The core circuit is stable and reliable after years of field use in the industry.

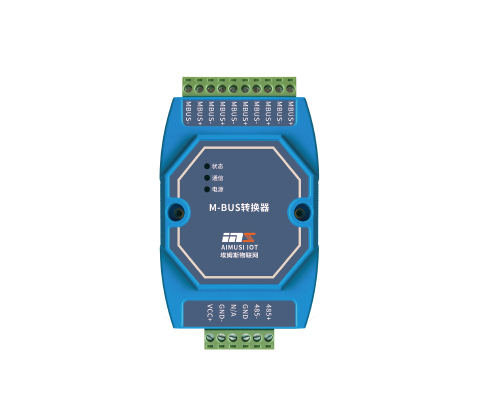

M-BUS-0

model Serial port M-BUS power supply Order No
M-BUS 485*1 1 12V-24V MBUS-0
M-BUS 232*1 1 12V-24V MBUS-1

Feature

Equipment power supply:
DC 12V~24V
M-BUS interface:
Conform to EN1434 and CJ/T188 standards
Number of loads:
500 (load current 􀀒 1. SmAxSOO)
M-BUS type:
master station
Communication baud rate:
300~9600bps,self-adaption
Small size:
103*72*27mm(Terminal not included)
Flexible installation:
Standard 35mm U-shaped guide rail
Use harsh environment!
working temperature -25~75°(

Applicable scenarios

pharmacy

Smart transportation

medical treatment

metallurgy

Smart agriculture

Paper industry
