IMS-M series

IMS - M series is a high-performance and expandable integrated edge controller. Integrating various data nodes, including digital input, digital output, analog input, analog output and other ports, can independently form a small system, especially suitable for building control.

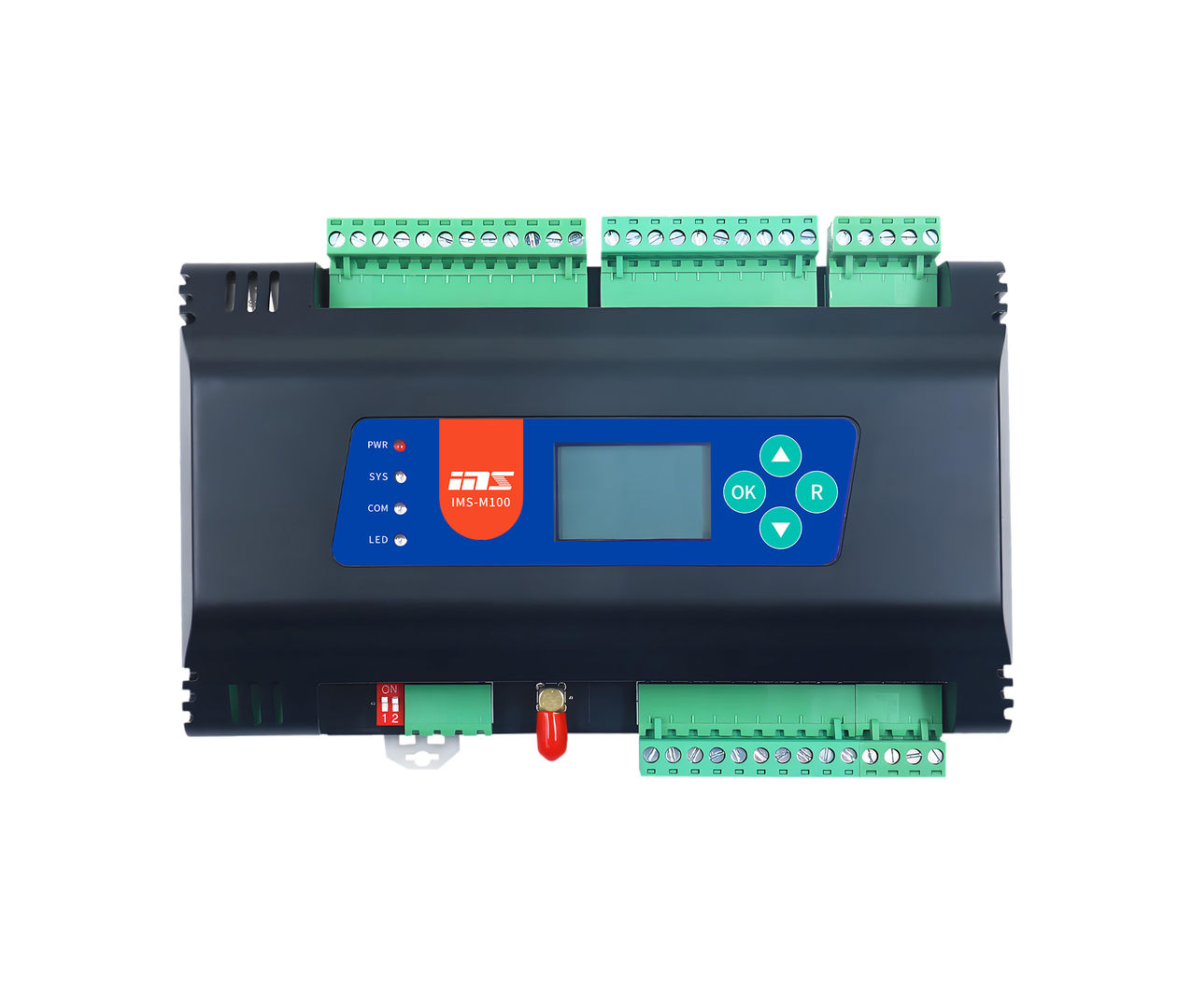

IMS-M100

Model	Network port	COM(232、485)	AI	AO	DI	DO	Power	Optional	Order number

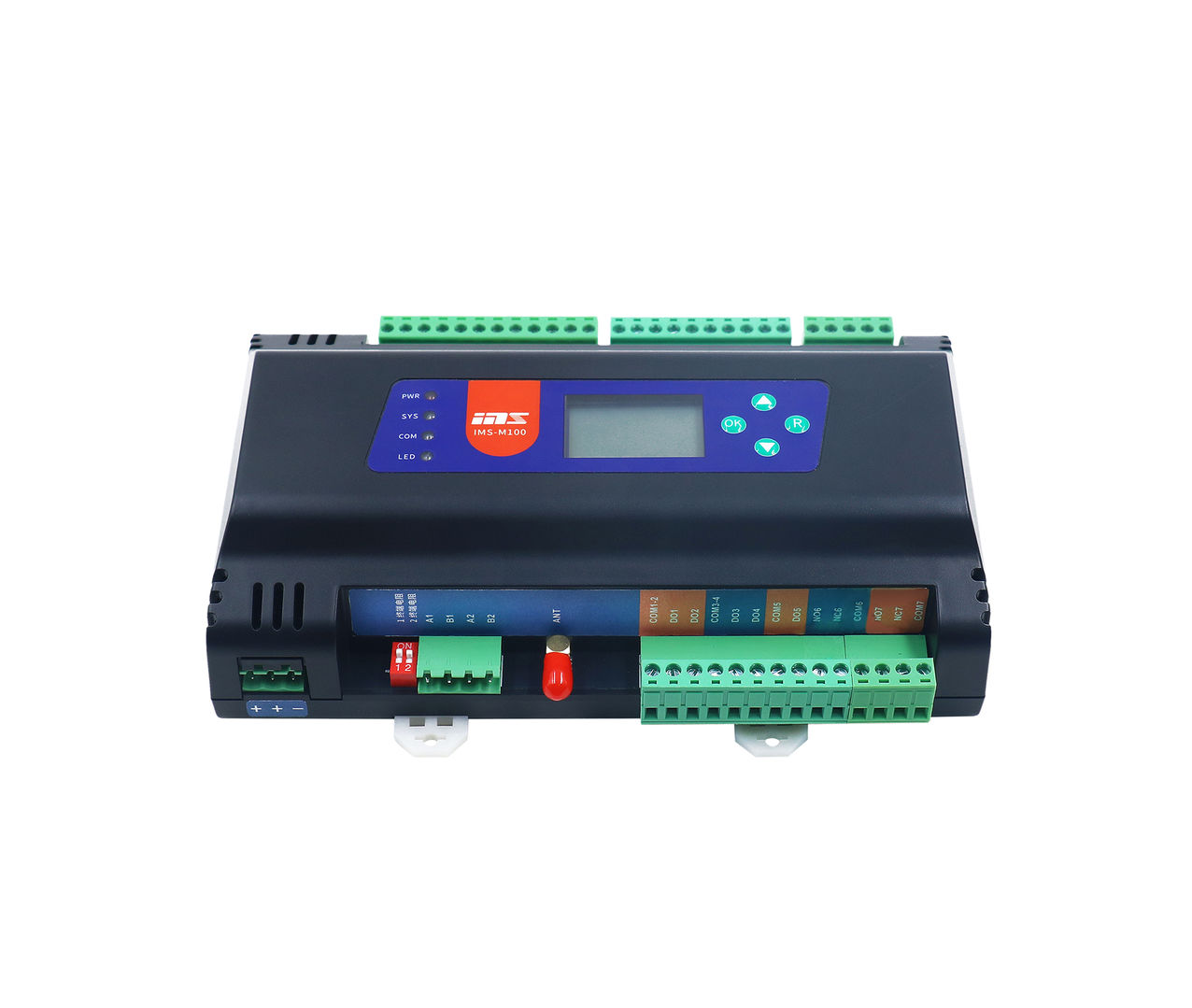

IMS-M100	1	2	8way 0-20mA 0-10V NTC Thermal resistance	4way PWM 4-20mA 0-10V	8-way Switching value frequency measurement	5-way normally open, 2-way normally open and closed 5-way normally open, 1-way normally open and closed, 1-way thyristor 5-way normally open, 2-way normally open and closed	DC24V AC100-265V DC12V	- WiFi 4G	IMS-M100-00、IMS-M100-01、IMS-M100-02、IMS-M100-04 IMS-M100-10、IMS-M100-11、IMS-M100-12、IMS-M100-14 IMS-M100-20、IMS-M100-21、IMS-M100-22、IMS-M100-24

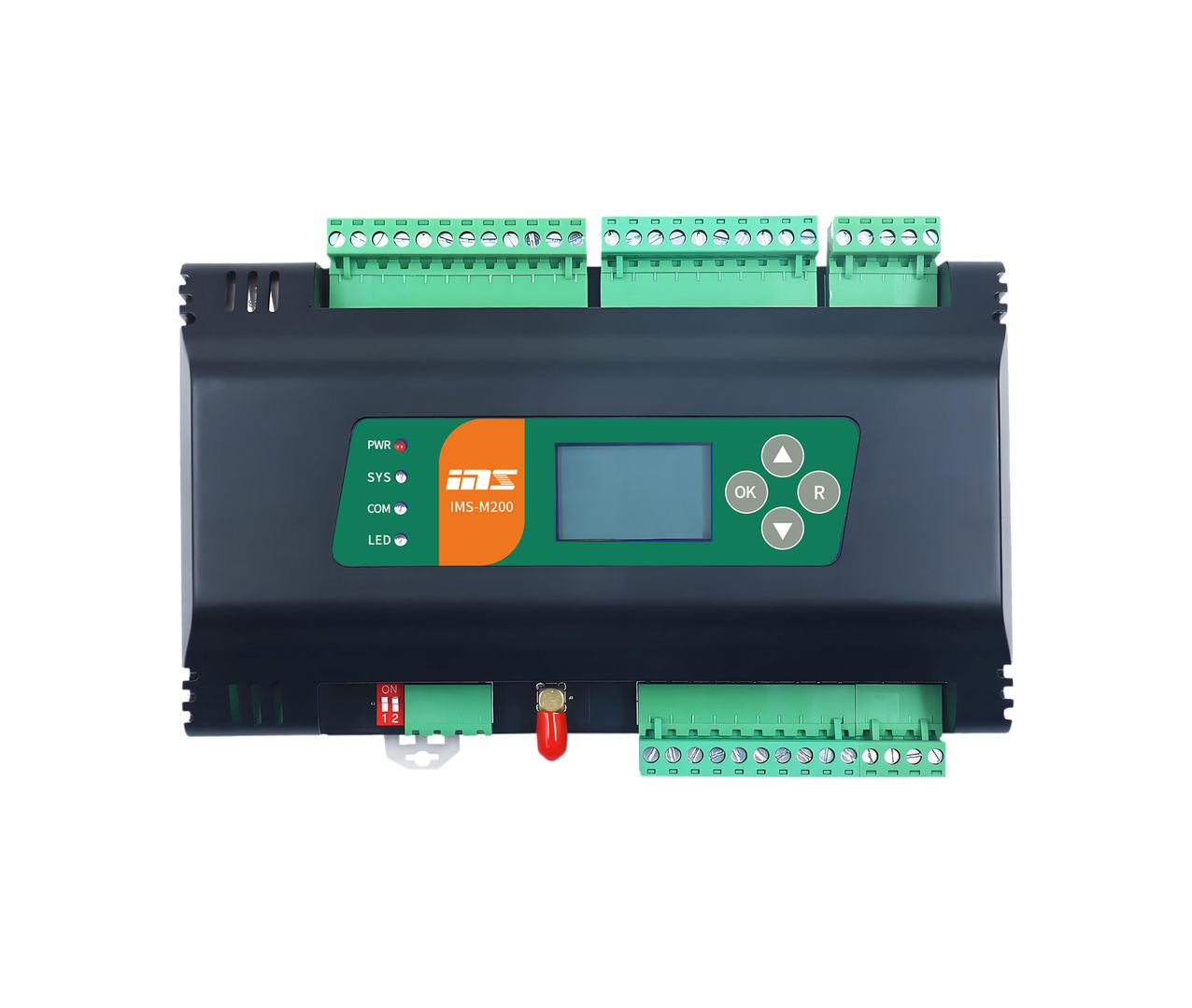

IMS-M200	1	2	4-way 0-12mA 0-10V NTC thermal resistance	-	12 routes Switching value frequency measurement	8-way normally open 2-way normally open and closed	DC12V DC24V AC100-265Vac	- LoRa(5km) WiFi 4G	IMS-M200-00、IMS-M200-01、IMS-M200-02、IMS-M200-04 IMS-M200-10、IMS-M200-11、IMS-M200-12、IMS-M200-14 IMS-M200-20、IMS-M200-21、IMS-M200-22、IMS-M200-24
IMS-M300	1	2	5way 0-20mA 0-10V NTC Thermal resistance	3way PWM 4-20mA 0-10V	12-way switch frequency measurement	8 roads are often open 2 road often open and often closed	DC24V DC12V AC100-265V	- LoRa(5km) WiFi 4G	IMS-M300-00、IMS-M300-01、IMS-M300-02、IMS-M300-04 IMS-M300-10、IMS-M300-11、IMS-M300-12、IMS-M300-14 IMS-M300-20、IMS-M300-21、IMS-M300-22、IMS-M300-24

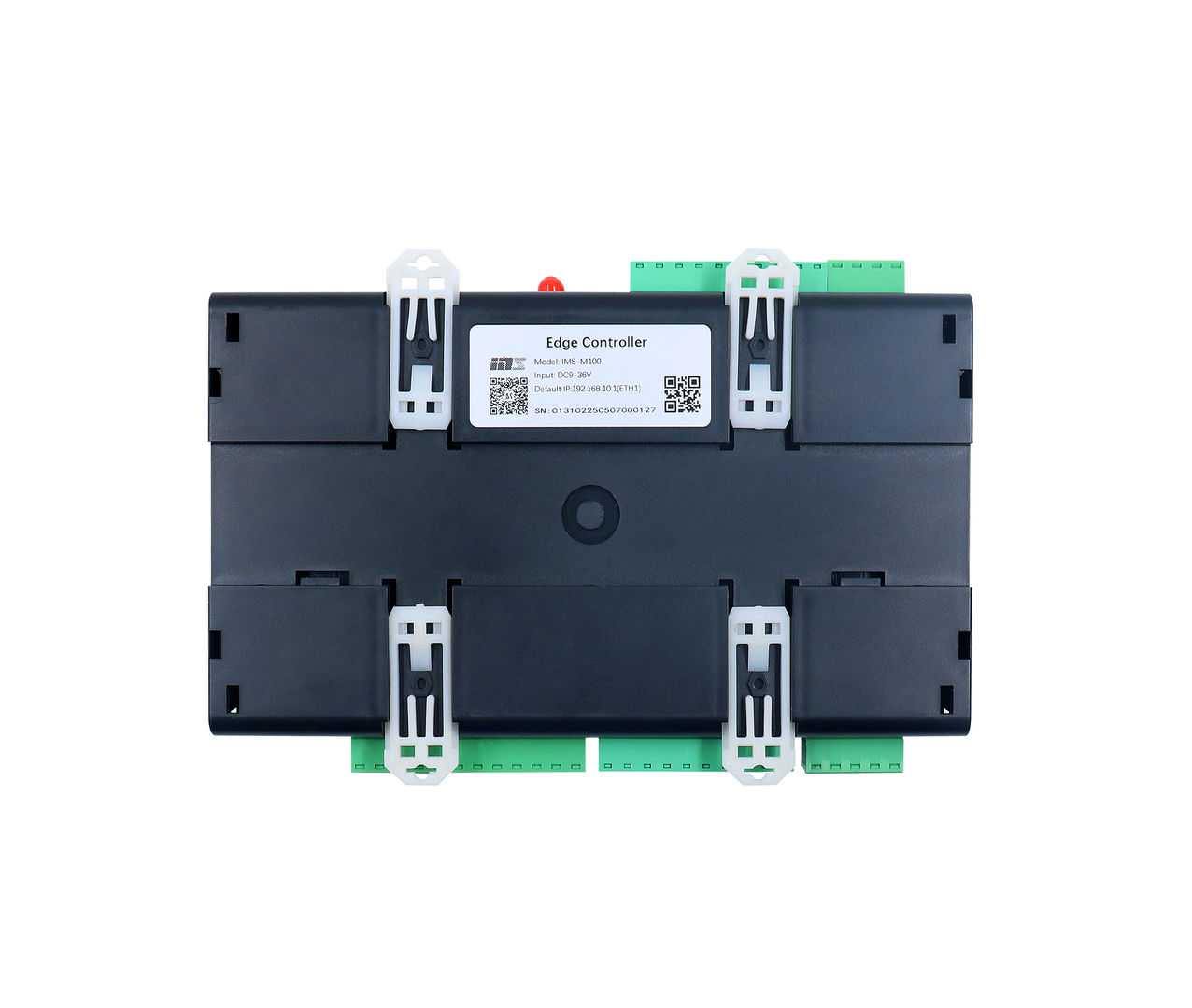

IMS-M500	1	10	Optional ( database maximum 1200 points )	Optional ( database maximum 1200 points )	Optional ( database maximum 1200 points )	Optional ( database maximum 1200 points )	DC9-36V AC100-265V	- LoRa(5km) WiFi 4G	IMS-M500-00、IMS-M500-01、IMS-M500-02、IMS-M500-04 IMS-M500-10、IMS-M500-11、IMS-M500-12、IMS-M500-14
