Smart power distribution

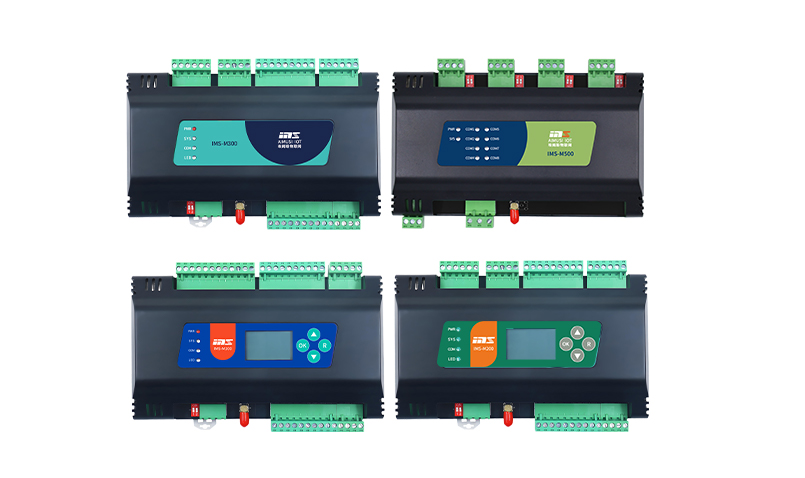

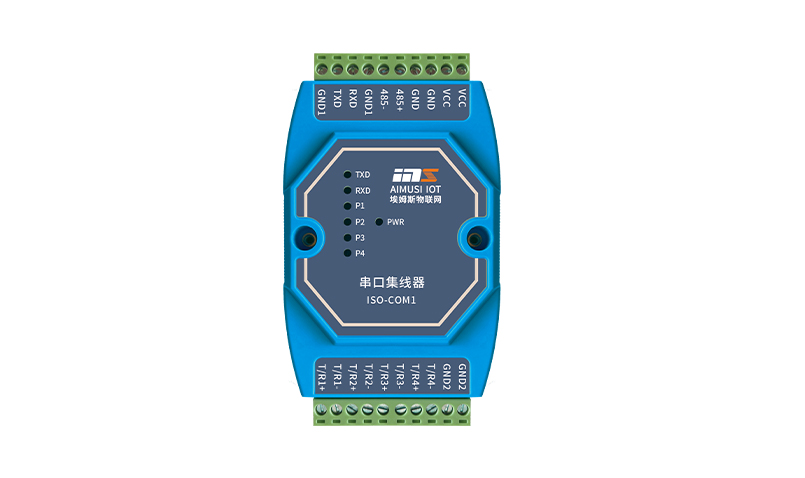

In order to reduce user investment and fully consider the structural characteristics of traditional distribution boxes, IMS has independently developed and designed a rail type networking communication equipment, namely the DR series products. Based on its rich application scenarios, it meets the networking needs of various scenarios. Years of experience in developing network communication technology. The distribution box is embedded with a DTU distribution device, a power module for the distribution device, and a power supply for the distribution device. By utilizing the intelligent remote monitoring function, it is possible to remotely collect meter readings and achieve networked transmission. In addition, with the help of USR Cloud's electricity monitoring platform, you can manage and control electricity safety and energy through the cloud.

System Architecture

Perception layer

Through various sensors and intelligent devices, the status and parameters of the distribution network can be sensed in real time, including voltage, current, power factor, equipment status, etc.

Network layer

The data of the perception layer is transmitted to the management layer through the communication network to realize the remote transmission and sharing of data.

Management layer

It processes and analyzes the data of the sensing layer to realize the monitoring, protection, control and optimization functions of the distribution network.

Application layer

Provide personalized application services according to user requirements, including energy management, equipment management, fault warning, remote control, etc.
