IMS module is an independent expansion module of edge controller.
The independent plug-in mode is used to match multiple models of IMS edge controllers, including digital input, digital output, analog input and analog output. A larger control system can be formed by networking with IMS edge controllers, which is flexible and suitable for building control, industrial automation, agricultural monitoring control, etc.
| model | type | communication | Interface (I/O) | explain | power supply | protocol | Order No |
|---|---|---|---|---|---|---|---|

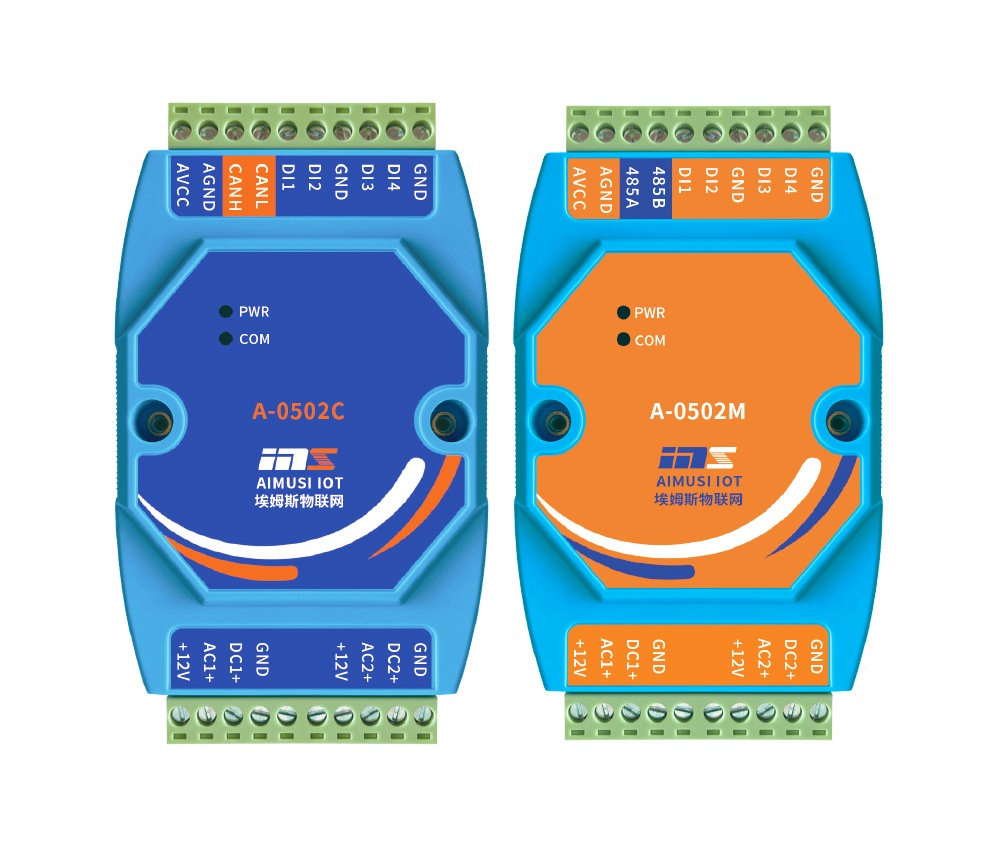

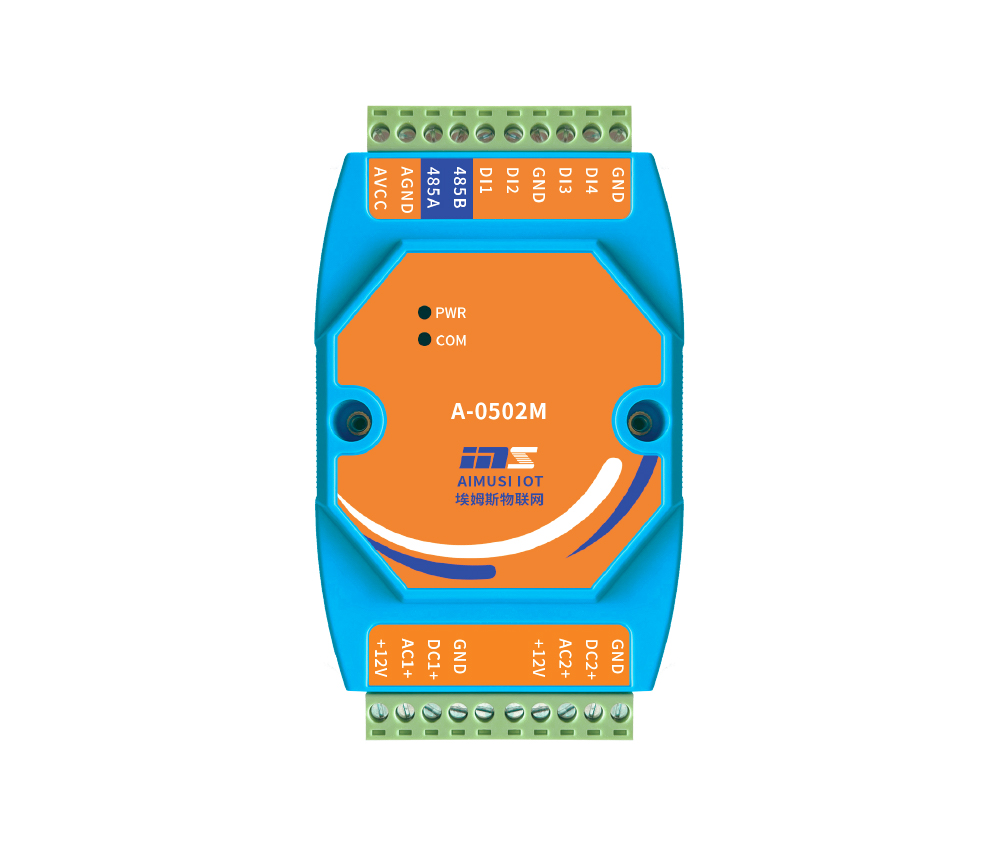

| A-0502 | RI | 1 | 6 | frequency measurement | DC9-36V | 485 CAN |
A-0502M A-0502C |
| A-0406 | DO | 1 | 6 | Dry node（3A） | DC9-36V | 485 CAN |
A-0406M A-0406C |
| A-0316 |
DI | 1 | 16 |
Wet node | DC9-36V | 485 CAN |
A-0316M A-0316C |
| A-0204 | AO | 1 | 4 | 4-20mA/1-5V | DC9-36V | 485 CAN |
A-0204M A-0204C |

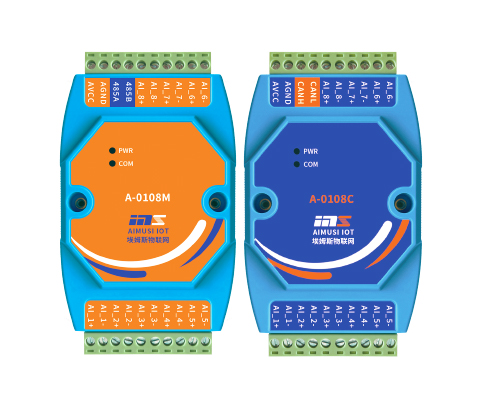

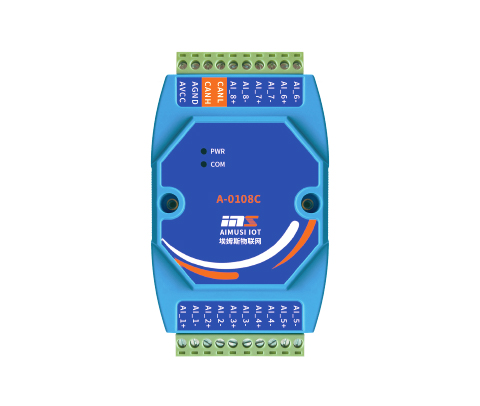

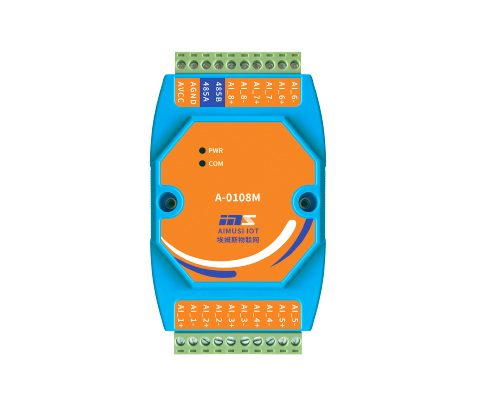

| A-0108 | AI | 1 | 8 | 4-20mA/1-5V | DC24V | 485 CAN |
A-0108M A-0108C |

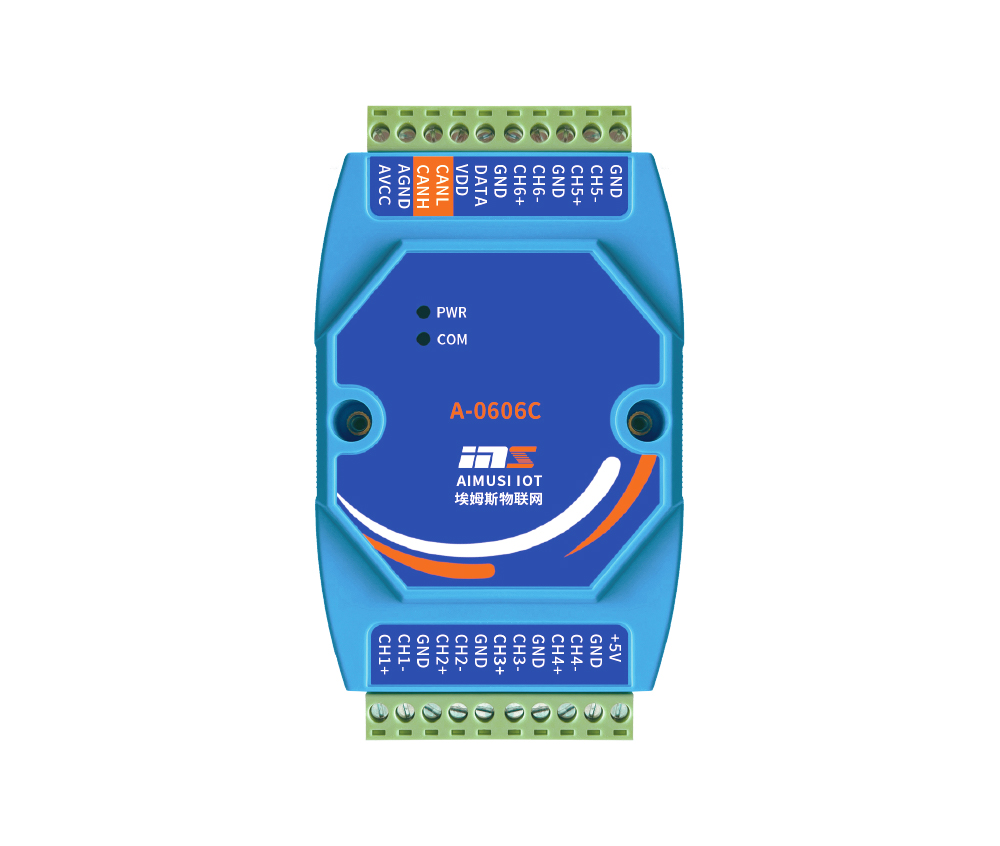

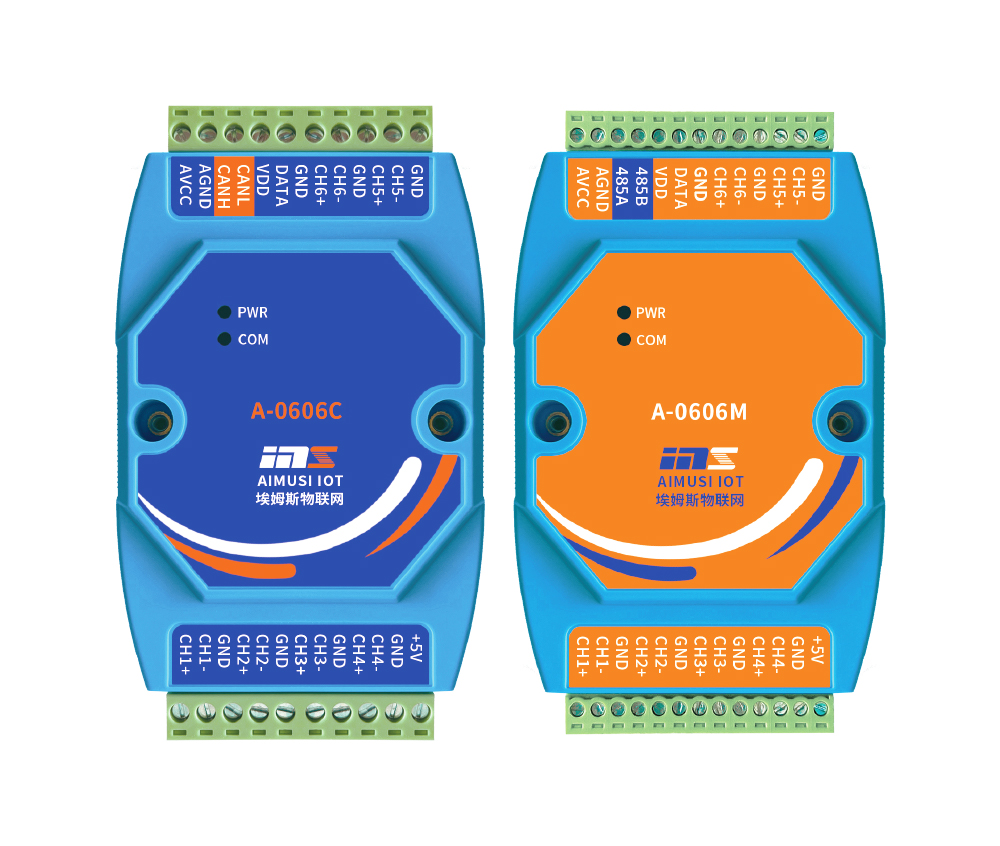

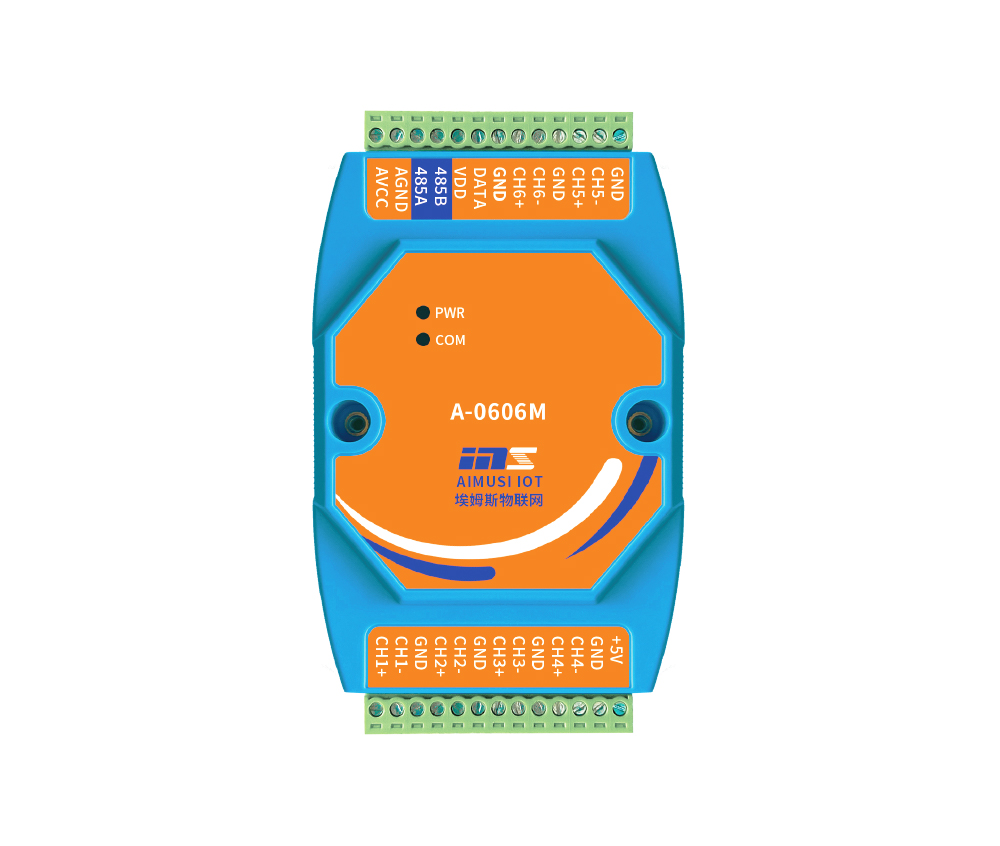

| A-0606 | RI | 1 |
6 | Temperature measurement（TC/RT） | DC9-36V | 485 CAN |
A-0606M A-0606C |
