Product Series
IMS-X series

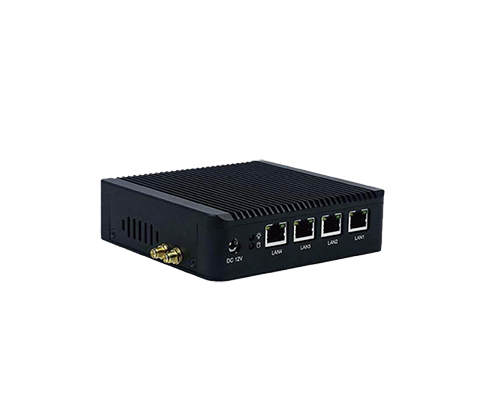

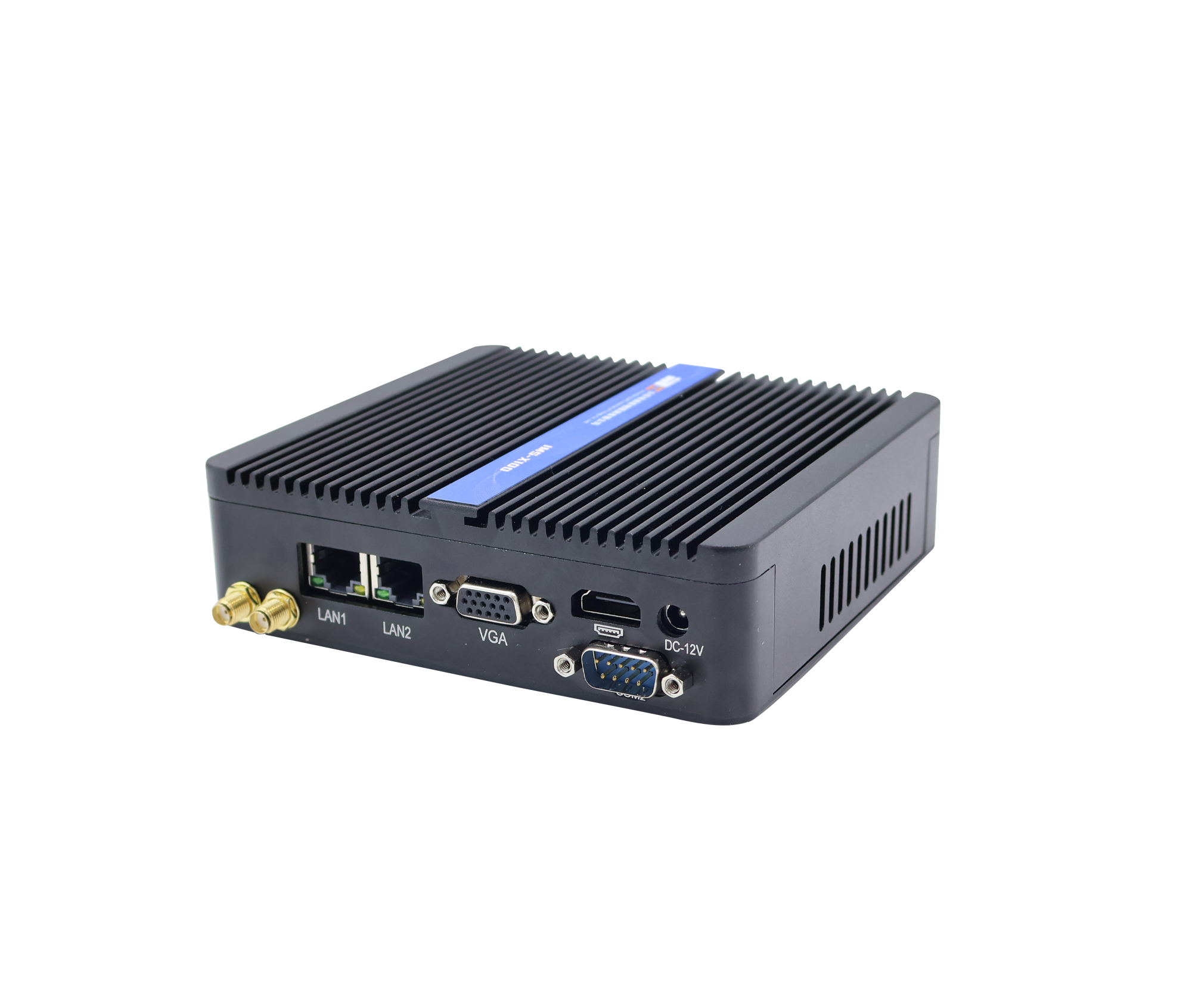

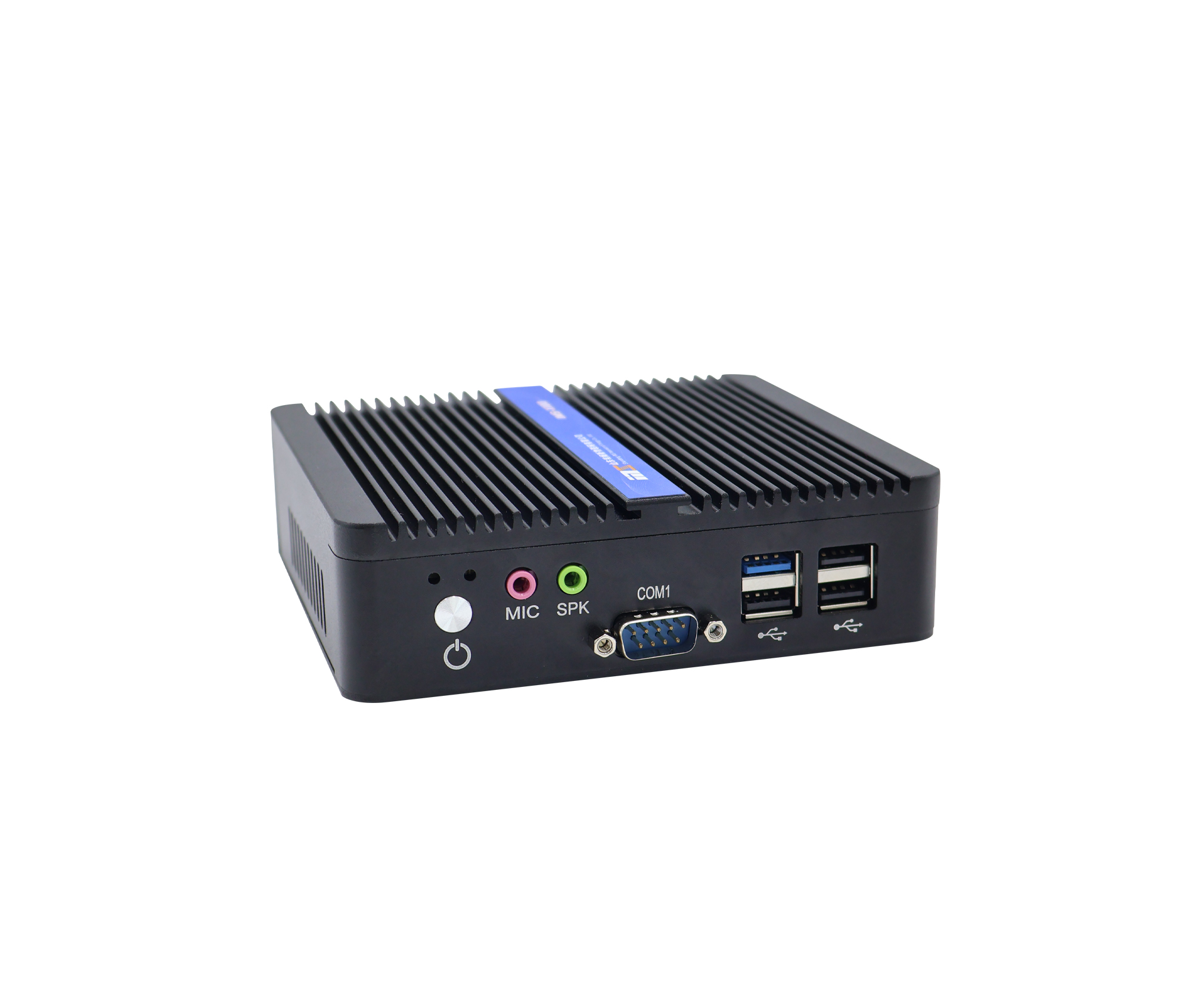

IMS-X series is a high-performance and expandable integrated edge controller.

Intel processor on x86 platform is adopted, which has high computing speed and high data processing capability, and can handle high-intensity computing tasks.

IMS-X100

model Internet port Serial port power supply Optional Order No
IMS-X100 2 232*2 DC12V -
WIFI
4G		 IMS-X100-0
IMS-X100-2
IMS-X100-4
IMS-X200 2 485*2 DC12V -
WIFI
4G		 IMS-X200-0
IMS-X200-2
IMS-X200-4
IMS-X300 4 232*2
485*2		 DC12V -
WiFi
4G		 IMS-X300-0
IMS-X300-2
IMS-X300-4

Feature

processor
X86 processor
Cloud platform:
Support IMS cloud platform
Flexibility:
Support interface and graphical programming
Scalability:
2-way serial port, 2-way network port, 1-way WiFi, 1-way 4G
Multi protocol support:
modbusRTU、modbusTCP、OPC UA、IEC61850、IEC104、MQTT、BACnet、Custom and other protocols
Small size:
133*125*40mm（Terminal not included）、lU、2U
Flexible installation:
Wall mounted, desktop
Applicable to harsh environment:
Operating temperature -25~75 ° C

Applicable scenarios

papermaking

Intelligent medical treatment

Intelligent Transportation

smart building

Intelligent security

pharmacy
