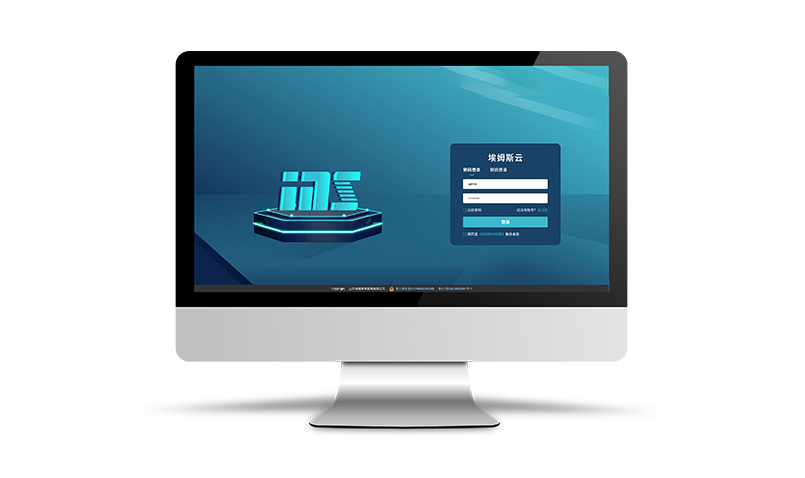

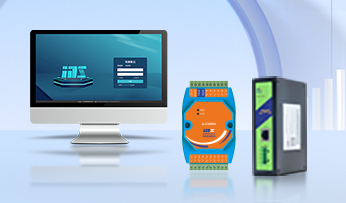

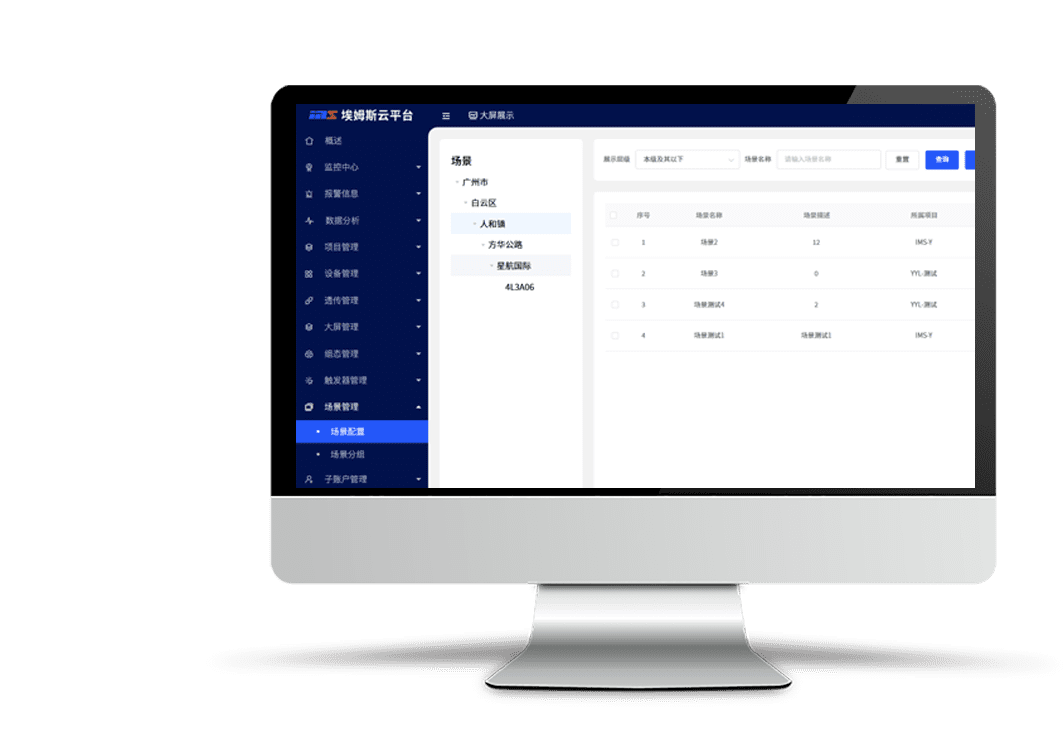

IMS Cloud Platform is a comprehensive Internet of Things cloud platform.
Designed for perfect cooperation with IMS controller, it can realize remote monitoring and control of IMS controller. No matter where you are, users can easily connect to the cloud platform through the network, and then conduct accurate remote operation and monitoring of related equipment.

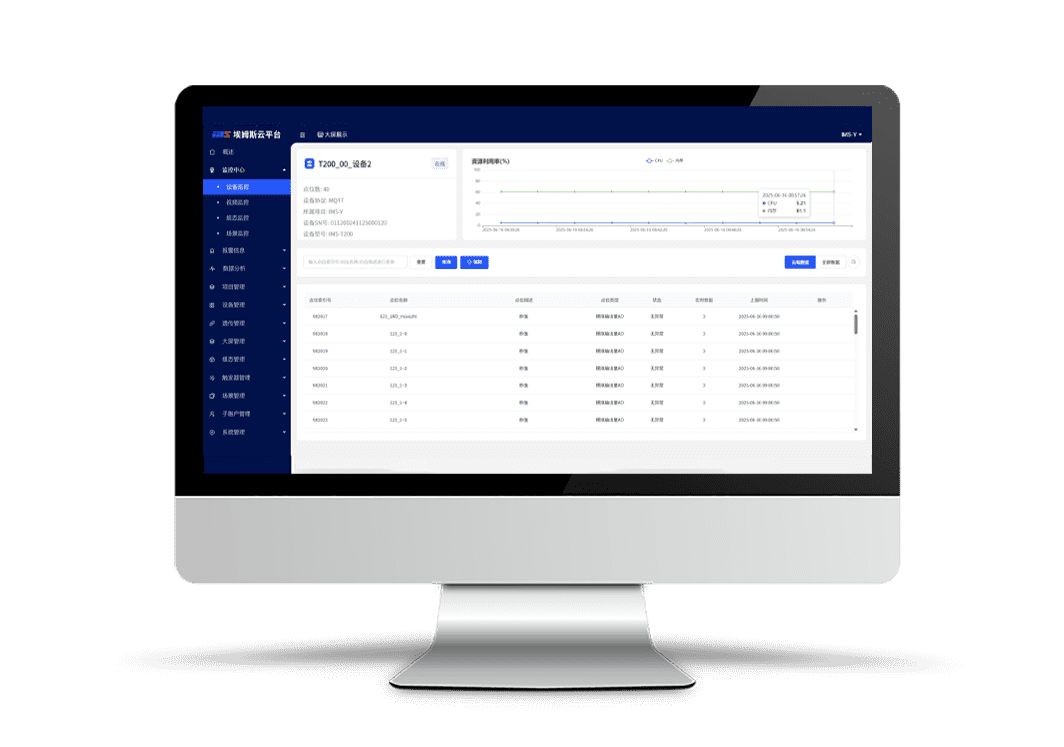

Equipment monitoring:Support real-time data and status monitoring of equipment

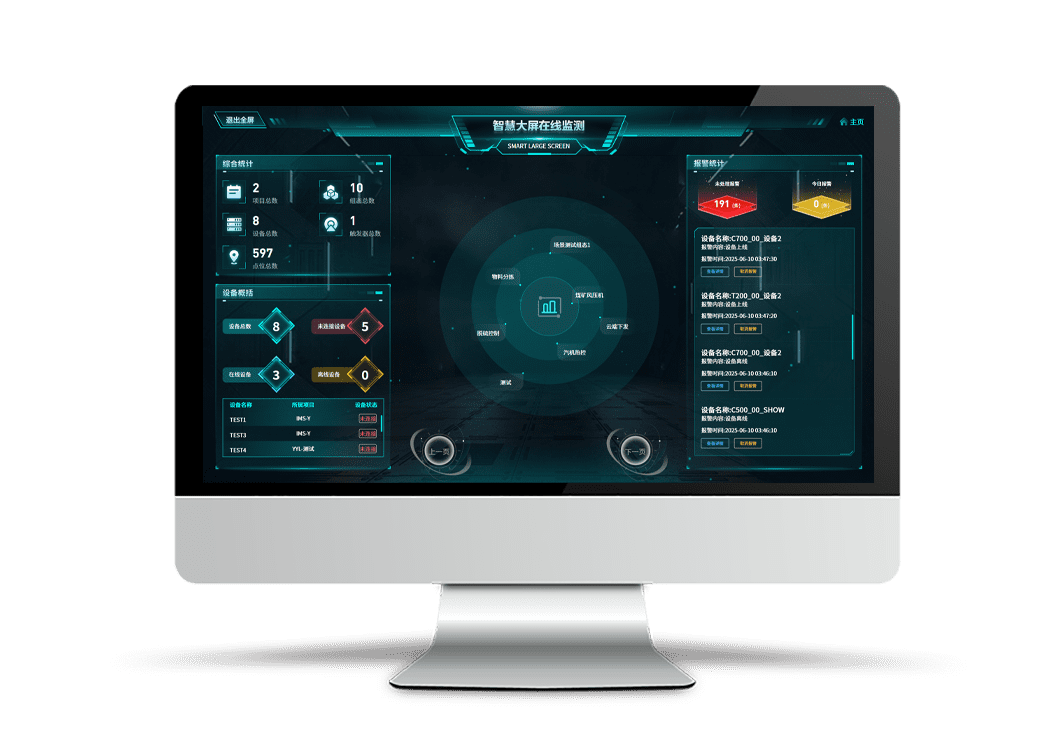

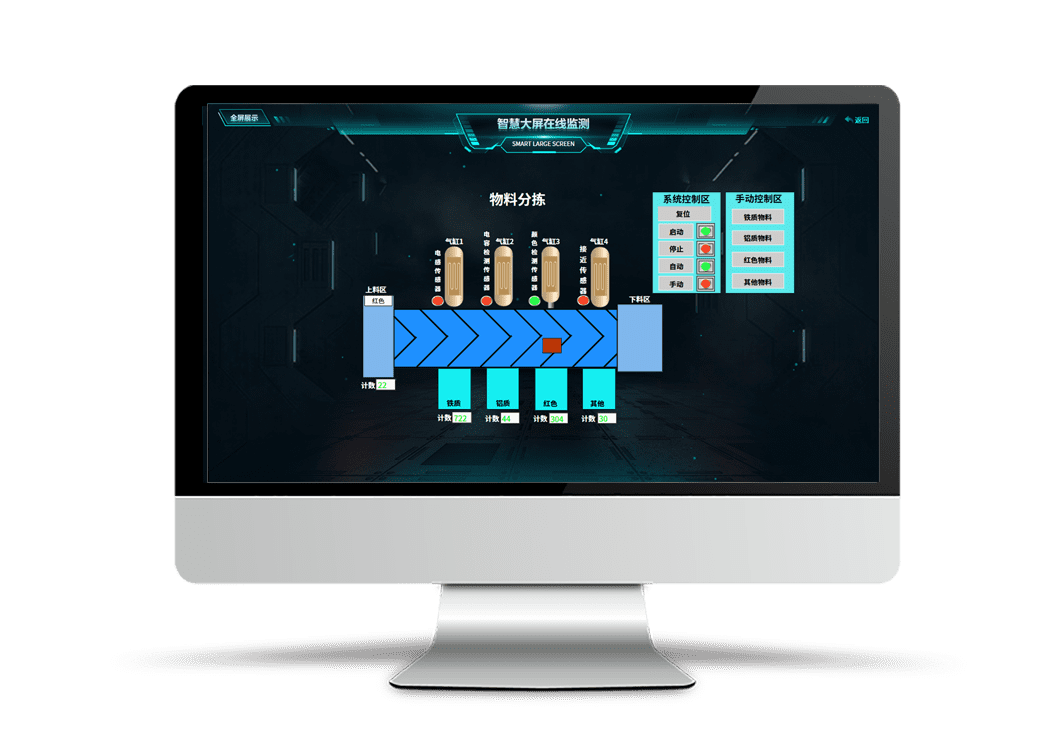

Large screen display:Support visual large screen exhibition
Historical data:Support historical data storage and viewing
Data analysis:Support curve graph analysis and alarm analysis of historical data and real-time data
Transparent transmission management:Support remote communication between devices
Configuration management:Support graphical interface configuration
Alarm management:Support public account alarm, SMS alarm and equipment linkage
The core technology is safe and controllable:Adopt a set of self-developed technical solutions, which can quickly and accurately respond to customers' technical service requirements, and can be deployed privately

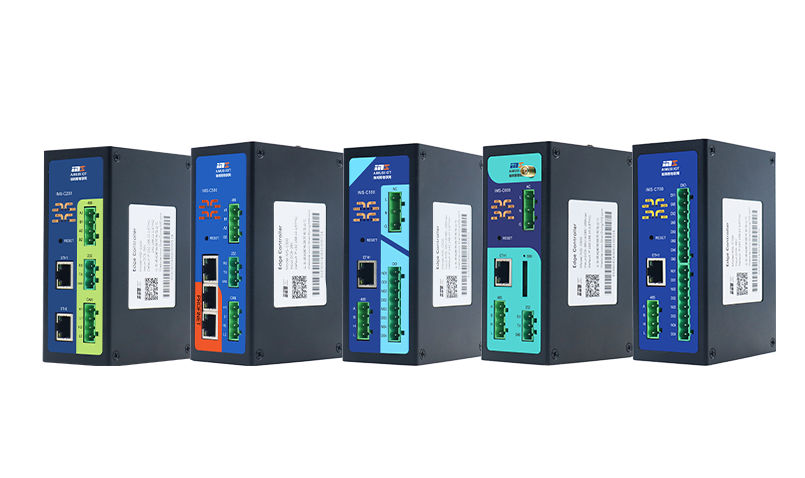

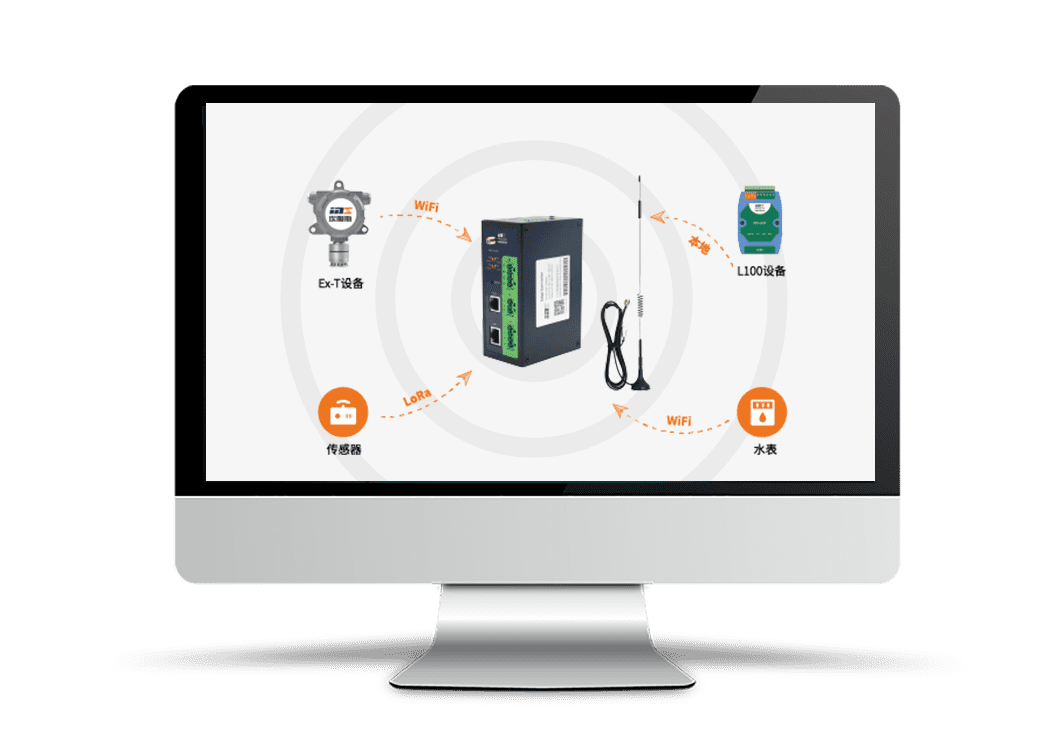

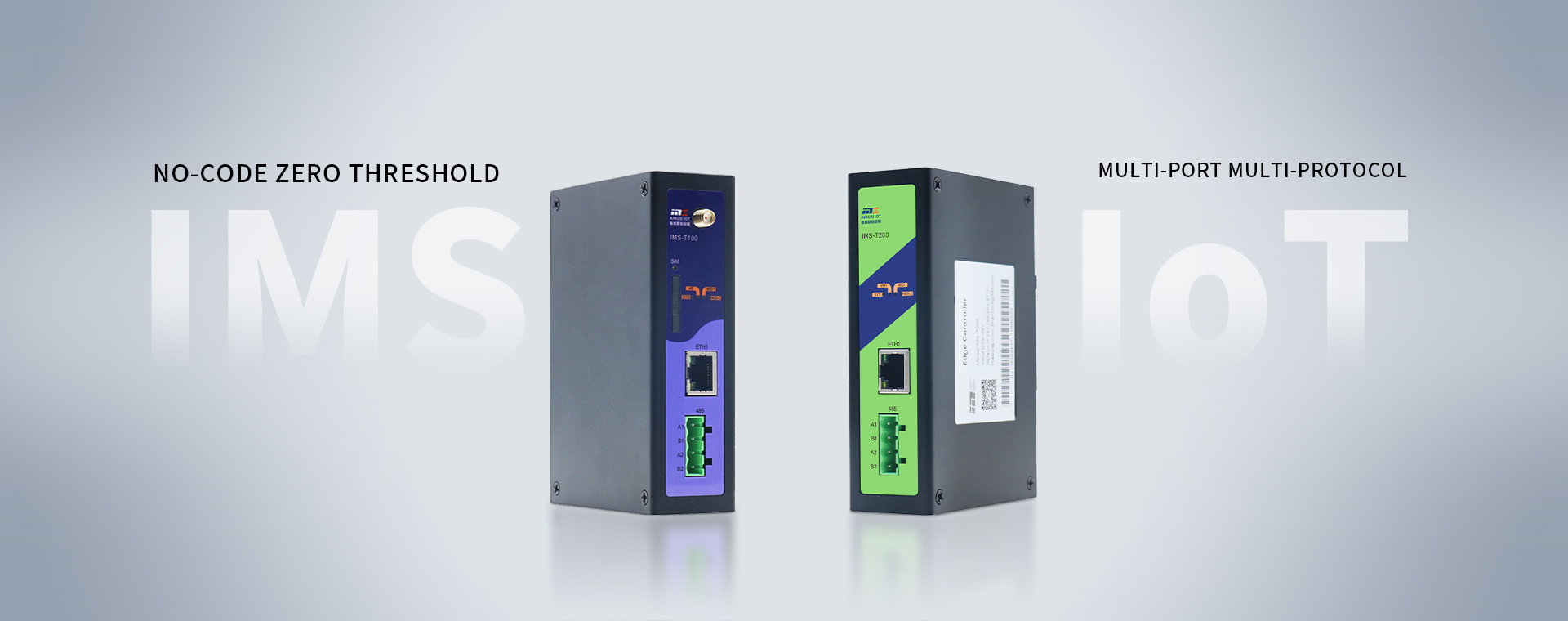

The IMS-C series edge controller adopts nxp processor, which has high performance and scalability, and supports rich hardware ports. It is a comprehensive edge controller, which can meet the needs of various industrial automation applications.
Processor:ARM
Cloud platform:Support IMS cloud platform
Flexibility:Support interface and graphical programming
Scalability:4-way serial port, 2-way network port, 2-way CAN, 1-way WiFi, 1-way LoRa, 1-way 4G, 4-way DI, 4-way DO
Multi protocol support:modbusRTU、modbusTCP、CANOPEN、OPC、IEC61850、IEC104、MB US、MQTT、profinet、profibus、 Water meter, electricity meter, user-defined and other protocols
Small size:125 * 80 * 52mm (excluding terminal)
Flexible installation:Wall mounted (lug, guide rail), desktop
Applicable to harsh environment:Full port isolation, operating temperature -25~75 ℃
Applicable scenarios:Transportation, aquaculture, petrochemical, gold making, new energy, new materials, etc

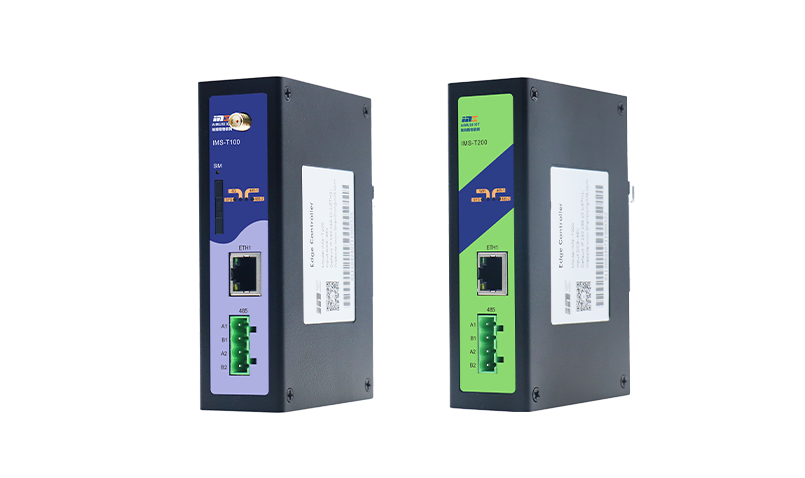

IMS-T series edge controller is a high-performance, scalable and comprehensive controller that uses pure domestic hardware solutions. Reduce dependence on foreign technology and reduce potential restricted risks.
Processor:Pure domestic hardware scheme, main frequency 1.2GHz
Cloud platform:Support IMS cloud platform
Flexibility:Support interface and graphical programming
Scalability:2 serial ports, 1 network port, 1 WiFi, 1 LoRa, 1 4G
Multi protocol support:modbusRTU、modbusTCP、OPC UA、IEC61850、IEC104、MQTT、 Custom and other protocols
Small size:125 * 80 * 36mm (excluding terminal)
Flexible installation:Wall mounted (lug, guide rail), desktop
Applicable to harsh environment:Full port isolation, operating temperature -25~75 ℃
Applicable scenarios:Chemical, pharmaceutical, power, building materials, oil and gas, food, etc

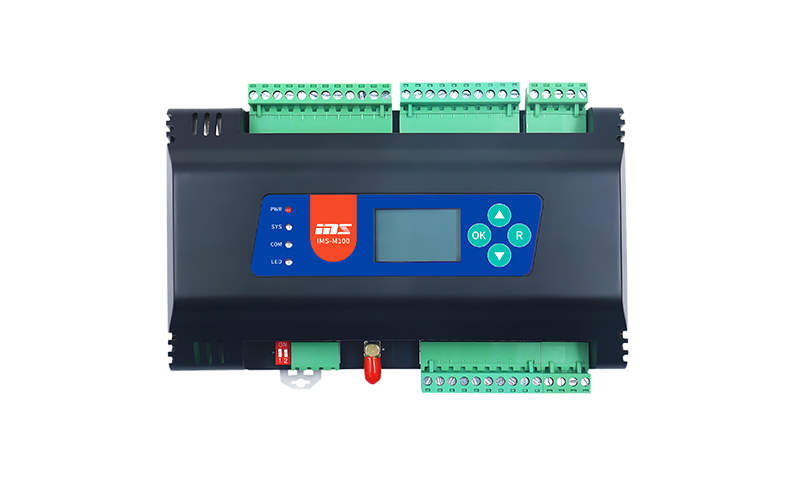

IMS - M series is a high-performance and expandable integrated edge controller.
Integrating various data nodes, including digital input, digital output, analog input, analog output and other ports, can independently form a small system, especially suitable for building control.
Processor:CortexA7
Cloud platform:Support IMS cloud platform
Flexibility:Support interface and graphical programming
Scalability:2 serial ports, 1 network port, 1 WiFi, 1 4G, AI, AO, DI, DO
Multi protocol support:ModbusRTU, modbusTCP, OPC UA, MQTT and other protocols
Small size:190*110*50mm
Flexible installation:Wall mounted (lug, guide rail), desktop
Applicable to harsh environment:Communication port isolation, operating temperature -25~75 ℃
Applicable scenarios:Buildings, HVAC, petrochemical, chemical, electric power, pharmacy, metallurgy, building materials, etc

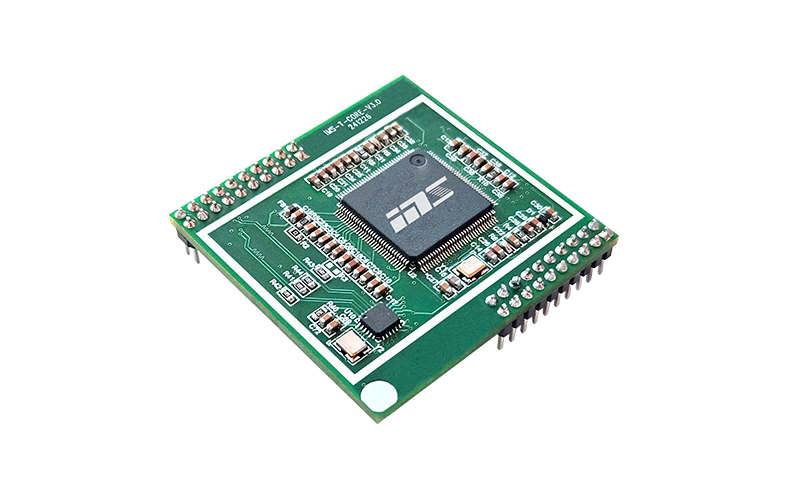

IMS core board, with strong compatibility, can fully support all IMS controller functions. The core board adopts DIP packaging mode, which provides convenient and efficient development experience for developers and helps to promote the development work smoothly.
Cloud platform:Support IMS cloud platform
Flexibility:Support interface and graphical programming
Scalability:4-way serial port, 1-way network port, 1-way SDIO, 2-way CAN port
Multi protocol support:modbusRTU、modbusTCP、OPC UA、IEC61850、IEC104、MQTT、 BACnet、 Custom and other protocols
Small size:40*40*10mm
Flexible installation:DIP (2.0 row needle)
Applicable to harsh environment:Operating temperature -25~75 ℃
Applicable scenarios:Buildings, chemicals, pharmaceuticals, electricity, building materials, oil and gas, food, etc
Edge computing
Distributed computing, enhancing real-time performance, improving security, and being efficient and flexible.
Multi port and multi protocol
Rich communication ports and protocols.
No code, can be programmed
Visualize the relevant information and configuration options of the database.
Core technology is safe and controllable
Adopting a complete set of independently developed technical solutions.
Smart factory
Through the integration of IMS two technologies and the edge controller, the industrial equipment data of the factory workshop is collected. After the controller realizes edge computing and data standardization, the data is uploaded to the workshop Kanban and the group's Internet of Things cloud platform. After cleaning, calculating, storing and analyzing the data on IMS or a third-party cloud platform, the real-time status and production status information of factory equipment is displayed through visual reports and industrial flow charts to improve the intelligent level of manufacturing plants, reduce operation and maintenance costs and promote enterprise upgrading
Shandong IMS IoT Co., Ltd. focusing on the field of Internet of Things, is a leading solution provider of industrial Internet of Things, and deeply engages in relevant technologies and services of Intelligent Manufacturing System (IMS). The company provides Internet of Things platform applications, data acquisition systems and edge computing solutions to meet the digital needs of industrial manufacturing enterprises.
The business covers the R&D, production and sales of hardware equipment of the Internet of Things, as well as the development and operation of the Internet of Things platform. With Jinan R&D Service Center as the core, the company has established nationwide direct sales offices and industrial partnerships to promote the development of Industry 4.0. Products and solutions are widely used in oil and gas, petrochemical, chemical, power, pharmaceutical, metallurgy, building materials, paper making, new energy, new materials, food, transportation, aquaculture, agriculture, buildings and other industries.
